SetLink in a material



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 15/01/2008 at 18:53, xxxxxxxx wrote:

    User Information:
    Cinema 4D Version:   9.6+
    Platform:   Windows  ; Mac  ;  Mac OSX  ;
    Language(s) :     C++  ;

    ---------
    Hello All,

    i'm trying to setlink inside a my custom material with two others materials allocated and inserted in the same scene with:

    front=(BaseMaterial* )bcmat->GetMaterialLink(VRAY2SIDEDMATERIAL_PARAMS_LINK1, pp->GetDocument());
    back=(BaseMaterial* )bcmat->GetMaterialLink(VRAY2SIDEDMATERIAL_PARAMS_LINK2, pp->GetDocument());

    if (front) {
    frontMat=(BaseMaterial* )front->GetClone(NULL,NULL);
    scene->pDoc->InsertMaterial(frontMat);
    bcmat->SetLink(VRAY2SIDEDMATERIAL_PARAMS_LINK1,frontMat);
    }

    but if just here i try to get the linked material:

    front=(BaseMaterial* )bcmat->GetMaterialLink(VRAY2SIDEDMATERIAL_PARAMS_LINK1, node->GetDocument());

    front is 0x00000000

    so.. seem that i'm using the wrong way to fill the material link inside my materil..

    Any help?

    Thanks
    Renato



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 15/01/2008 at 22:25, xxxxxxxx wrote:

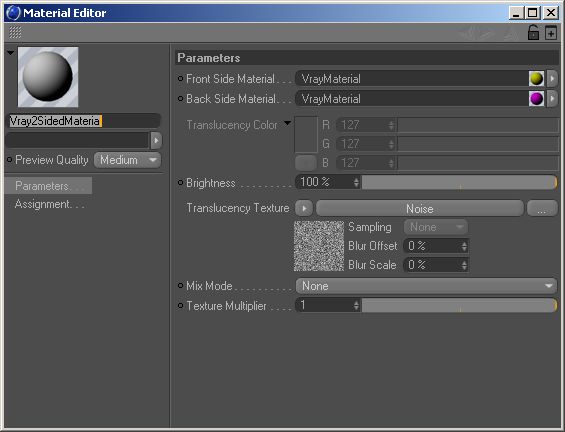

    This is the material snapshot:



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 16/01/2008 at 08:36, xxxxxxxx wrote:

    Hi all,

    please it's urgent for us :(

    Cheers
    Renato



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 17/01/2008 at 20:28, xxxxxxxx wrote:

    Hi all,

    i see that the CopyTo for this material is called 3 time.

    1. The first one is all ok, the snode links to materials are copied to the dnode.. it work :)

    2. now the current dnode is the same (same pointer) as the previous dnode.. but the 2 material link are now NULL;

    the rendering is called..

    1. as the first time, it work but unuseless.. :(

    What i really don't understand, why the entire container is not copied? I used to play inside the copyto to understand what's can be the cause..

    still investigating..
    Renato T.

    Edit:

    I forgot.. this problem is only in the material preview.. all kind of rendering are working very good..



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 20/01/2008 at 08:44, xxxxxxxx wrote:

    The problem is that the material preview is designed to only copy one material to a new (internal) document. Links only work within the same document, so that's why it fails.
    I'm sorry, but I don't see a solution for this type of purpose right now!



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 20/01/2008 at 08:58, xxxxxxxx wrote:

    Hello Philip,

    Thanks for your answer.. but really there is no solution?
    Do i must write my custom preview routine and bypass the pDoc things?

    Cheers
    Renato



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 20/01/2008 at 09:17, xxxxxxxx wrote:

    You could try to detect a material preview situation and use GetData(id).GetBaseLink()->ForceGetLink() instead of GetMaterialLink().
    ForceGetLink does no document checking but is risky in a multithreaded environment as the one document might be long gone by the time you access it. Therefore it should be limited to the material preview situation only.



  • THE POST BELOW IS MORE THAN 5 YEARS OLD. RELATED SUPPORT INFORMATION MIGHT BE OUTDATED OR DEPRECATED

    On 20/01/2008 at 11:28, xxxxxxxx wrote:

    Thanks Philip,

    i'll try..

    but what about a custom preview scene?

    Cheers
    Renato
