LAYOUTGROUP Description Resource



  • Hello,

    I want to create an LAYOUTGROUP with two column and I want to add a full width SEPARATOR between certain elements.
    Here is my Description Resource code

    GROUP ID_OBJECTPROPERTIES
    {
    	GROUP
    	{
    		LAYOUTGROUP; COLUMNS 2; DEFAULT 1;
    		GROUP
    		{
    			REAL MYOBJECT_WIDTH { UNIT METER; MIN 1.0; MAX 38000; MINSLIDER 0; MAXSLIDER 2000; STEP 1; }
    			REAL MYOBJECT_HEIGHT { UNIT METER; MIN 0.0; MAX 38000; MINSLIDER 0; MAXSLIDER 2000; STEP 1; }
    			REAL MYOBJECT_DEPTH { UNIT METER; MIN 1; MAX 100000; MINSLIDER 1; MAXSLIDER 3000; STEP 1; }

    			SEPARATOR { LINE; }

    			REAL MYOBJECT_FILLET_RADIUS { UNIT METER; MIN 0; MAX 100000; MINSLIDER 1; MAXSLIDER 700; STEP 0.1; }
    			REAL MYOBJECT_THICKNESS { UNIT METER; MIN 0; MAX 10000; STEP 1; }

    			SEPARATOR	{ LINE; }

    			LONG MYOBJECT_AXIS
    			{
    				CYCLE
    				{
    					MYOBJECT_AXIS_XP;
    					MYOBJECT_AXIS_XN;
    					MYOBJECT_AXIS_ZP;
    					MYOBJECT_AXIS_ZN;
    				}
    			}

    			SEPARATOR	{ LINE; }

    			BOOL MYOBJECT_SEEN_BY_CAMERA {  }
    			BOOL MYOBJECT_SEEN_BY_TRANSPARENCY {  }
    			BOOL MYOBJECT_SEEN_BY_REFLECTION {  }
    		}

    		GROUP
    		{
    			LONG MYOBJECT_SEGMENTS_X { MIN 1; MAX 1000; }
    			LONG MYOBJECT_SEGMENTS_Y { MIN 1; MAX 1000; }
    			LONG MYOBJECT_SEGMENTS_Z { MIN 1; MAX 1000; }

    			SEPARATOR { LINE; }

    			LONG MYOBJECT_FILLET_SUB	{ MIN 1; MAX 1000; }
    		}
    	}
    }

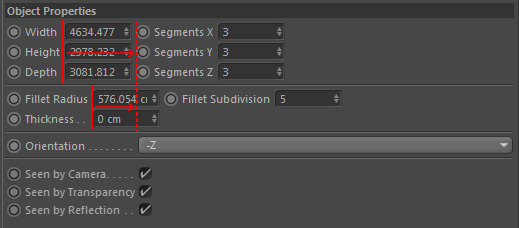

    And here is a screenshot of the result:


    and here is an image of what I want to obtain as result (I want a full width separator line)


    I tried with the following code, I obtain a full width separator but the first column elements doesn't have the same width

    GROUP ID_OBJECTPROPERTIES
    {
    	GROUP
    	{
    		LAYOUTGROUP; COLUMNS 2; DEFAULT 1;
    		GROUP
    		{
    			REAL MYOBJECT_WIDTH { UNIT METER; MIN 1.0; MAX 38000; MINSLIDER 0; MAXSLIDER 2000; STEP 1; }
    			REAL MYOBJECT_HEIGHT { UNIT METER; MIN 0.0; MAX 38000; MINSLIDER 0; MAXSLIDER 2000; STEP 1; }
    			REAL MYOBJECT_DEPTH { UNIT METER; MIN 1; MAX 100000; MINSLIDER 1; MAXSLIDER 3000; STEP 1; }
    		}

    		GROUP
    		{
    			LONG MYOBJECT_SEGMENTS_X { MIN 1; MAX 1000; }
    			LONG MYOBJECT_SEGMENTS_Y { MIN 1; MAX 1000; }
    			LONG MYOBJECT_SEGMENTS_Z { MIN 1; MAX 1000; }
    		}
    	}

            SEPARATOR { LINE; }

    	GROUP
    	{
    		LAYOUTGROUP; COLUMNS 2; DEFAULT 1;
    		GROUP
    		{
    			REAL MYOBJECT_FILLET_RADIUS { UNIT METER; MIN 0; MAX 100000; MINSLIDER 1; MAXSLIDER 700; STEP 0.1; }
    			REAL MYOBJECT_WALL_THICKNESS { UNIT METER; MIN 0; MAX 10000; STEP 1; }
    		}

    		GROUP
    		{
    			LONG MYOBJECT_FILLET_SUB	{ MIN 1; MAX 1000; }
    		}
    	}

    	SEPARATOR	{ LINE; }

    	LONG MYOBJECT_AXIS
    	{
    		CYCLE
    		{
    			MYOBJECT_AXIS_XP;
    			MYOBJECT_AXIS_XN;
    			MYOBJECT_AXIS_ZP;
    			MYOBJECT_AXIS_ZN;
    		}
    	}

    	SEPARATOR	{ LINE; }

    	BOOL MYOBJECT_SEEN_BY_CAMERA {  }
    	BOOL MYOBJECT_SEEN_BY_TRANSPARENCY {  }
    	BOOL MYOBJECT_SEEN_BY_REFLECTION {  }
    }


    Result:

    Thank you.



  • Hi,

    the trick is to use a dummy STATICTEXT element with the JOINENDSCALE flag. The example is taken from ddoc.res - the file for the project settings dialog. Rember you can (should) always use a text file search tool like Agent Ransack to peek into type, interface or smybol definitions to figure out how things are working.

    CONTAINER Ddoc
    {
    	NAME Ddoc;

    	GROUP DOCUMENT_GROUP_PROJECTSETTINGS
    	{
    		DEFAULT 1;
    		COLUMNS 2;

    		UNITSCALE DOCUMENT_DOCUNIT { ANIM OFF; }
    		STATICTEXT { JOINENDSCALE; }

    		BUTTON DOCUMENT_SCALEDOCUMENT {}
    		STATICTEXT { }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		LONG DOCUMENT_FPS { ANIM OFF; MIN 1; MAX 2500; }
    		BASETIME DOCUMENT_TIME { ANIM OFF; }

    		BASETIME DOCUMENT_MINTIME	{ ANIM OFF; }
    		BASETIME DOCUMENT_MAXTIME	{ ANIM OFF; }

    		BASETIME DOCUMENT_LOOPMINTIME	{ ANIM OFF; }
    		BASETIME DOCUMENT_LOOPMAXTIME	{ ANIM OFF; }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		REAL DOCUMENT_LOD { ANIM OFF; UNIT PERCENT; MIN 0.0; MAX 100.0; }
    		BOOL DOCUMENT_RENDERLOD { ANIM OFF; }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		BOOL DOCUMENT_USEANIMATION { ANIM OFF; }
    		BOOL DOCUMENT_USEEXPRESSIONS { ANIM OFF; }
    		BOOL DOCUMENT_USEGENERATORS { ANIM OFF; }
    		BOOL DOCUMENT_USEDEFORMERS { ANIM OFF; }

    		BOOL DOCUMENT_USEMOTIONSYSTEM { ANIM OFF; }
    		STATICTEXT { }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		LONG DOCUMENT_DEFAULTMATERIAL_TYPE { ALIGN_LEFT; ANIM OFF; CYCLE { DOCUMENT_DEFAULTMATERIAL_TYPE_WHITE; DOCUMENT_DEFAULTMATERIAL_TYPE_BLUE; DOCUMENT_DEFAULTMATERIAL_TYPE_USER; }}
    		STATICTEXT { }

    		COLOR DOCUMENT_DEFAULTMATERIAL_COLOR { ANIM OFF; FIT_H; }
    		STATICTEXT { JOINENDSCALE; }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		LONG DOCUMENT_CLIPPING_PRESET
    		{
    			ALIGN_LEFT; ANIM OFF; PARENTCOLLAPSE;
    			CYCLE
    			{
    				DOCUMENT_CLIPPING_PRESET_TINY;
    				DOCUMENT_CLIPPING_PRESET_SMALL;
    				DOCUMENT_CLIPPING_PRESET_MEDIUM;
    				DOCUMENT_CLIPPING_PRESET_LARGE;
    				DOCUMENT_CLIPPING_PRESET_HUGE;
    				DOCUMENT_CLIPPING_PRESET_CUSTOM;
    			}
    		}
    		STATICTEXT { }

    		REAL DOCUMENT_CLIPPING_PRESET_NEAR { FIT_H; PARENTCOLLAPSE DOCUMENT_CLIPPING_PRESET; ANIM OFF; UNIT METER; MIN 0; }
    		STATICTEXT { JOINENDSCALE; }

    		REAL DOCUMENT_CLIPPING_PRESET_FAR { FIT_H; PARENTCOLLAPSE DOCUMENT_CLIPPING_PRESET; ANIM OFF; UNIT METER; MIN 0; }
    		STATICTEXT { JOINENDSCALE; }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		BOOL DOCUMENT_LINEARWORKFLOW { ANIM OFF; }
    		STATICTEXT { JOINENDSCALE; }
    		LONG DOCUMENT_COLORPROFILE { PARENTCOLLAPSE; ANIM OFF; CYCLE { DOCUMENT_COLORPROFILE_SRGB; DOCUMENT_COLORPROFILE_LINEAR; DOCUMENT_COLORPROFILE_DISABLED; }}
    		STATICTEXT { }

    		GROUP
    		{
    			STRING DOCUMENT_COLORINFO { PARENTCOLLAPSE DOCUMENT_COLORPROFILE; ANIM OFF; CUSTOMGUI MULTISTRING; WORDWRAP; READONLY; }
    		}

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		GROUP
    		{
    			COLUMNS 1;
    			BOOL DOCUMENT_CONVERT_BXDF_TO_COLORCHANNEL { ANIM OFF; }
    		}
    		STATICTEXT { JOINENDSCALE; }

    		SEPARATOR { LINE; }
    		STATICTEXT { JOINENDSCALE; }

    		GROUP
    		{
    			COLUMNS 2;

    			BUTTON	DOCUMENT_PRESET_COMMAND_LOAD		{  }
    			BUTTON	DOCUMENT_PRESET_COMMAND_SAVE		{  }
    		}
    		STATICTEXT { JOINENDSCALE; }
    	}

    	GROUP DOCUMENT_INFO_GROUP1
    	{
    		SCALE_V;

    		STRING DOCUMENT_INFO_AUTHOR { ANIM OFF; }
    		STRING DOCUMENT_INFO_COPYRIGHT { ANIM OFF; CUSTOMGUI MULTISTRING; SCALE_V; WORDWRAP; }
    		STRING DOCUMENT_INFO_README { ANIM OFF; CUSTOMGUI MULTISTRING; SCALE_V; WORDWRAP; }
    		STATICTEXT DOCUMENT_INFO_FILEFORMAT { ANIM OFF; BORDER; }
    		STATICTEXT DOCUMENT_INFO_FILEVERSION { ANIM OFF; BORDER; }

    		STATICTEXT DOCUMENT_INFO_PRGCREATOR_STRING { ANIM OFF; BORDER; }
    		STRING DOCUMENT_INFO_PRGCREATOR_NAME { HIDDEN; ANIM OFF; }
    		LONG DOCUMENT_INFO_PRGCREATOR_ID { HIDDEN; ANIM OFF; }
    		STATICTEXT DOCUMENT_INFO_DATECREATED_STRING { ANIM OFF; BORDER; }

    		STATICTEXT DOCUMENT_INFO_PRGWRITER_STRING { ANIM OFF; BORDER; }
    		STRING DOCUMENT_INFO_PRGWRITER_NAME { HIDDEN; ANIM OFF; }
    		LONG DOCUMENT_INFO_PRGWRITER_ID { HIDDEN; ANIM OFF; }

    		STATICTEXT DOCUMENT_INFO_DATESAVED_STRING { ANIM OFF; BORDER; }

    		FILENAME DOCUMENT_PATH { HIDDEN; READONLY; ANIM OFF; DIRECTORY; }
    		FILENAME DOCUMENT_NAME { HIDDEN; READONLY; ANIM OFF; }
    		FILENAME DOCUMENT_FILEPATH { READONLY; ANIM OFF; }

    		BITMAPBUTTON DOCUMENT_PREVIEW_IMAGE { SCALE_H; BORDER; }
    		LONG DOCUMENT_PREVIEW_COMMAND
    		{
    			SCALE_H;
    			ANIM OFF;
    			CUSTOMGUI CYCLEBUTTON;
    			CYCLE
    			{
    				DOCUMENT_PREVIEW_COMMAND_AUTO;
    				DOCUMENT_PREVIEW_COMMAND_PASTE;
    				DOCUMENT_PREVIEW_COMMAND_FROMEDITOR;
    				DOCUMENT_PREVIEW_COMMAND_LOAD;
    			}
    		}
    	}

    	GROUP DOCUMENT_INFO_GROUP2
    	{
    		//STRING DOCUMENT_INFO_PREVIEW { ANIM OFF; }
    	}
    }



    Cheers
    zipit



  • @zipit said in LAYOUTGROUP Description Resource:

    STATICTEXT { JOINENDSCALE; }

    I'm searching this solution for long time, thank you so much!!!
